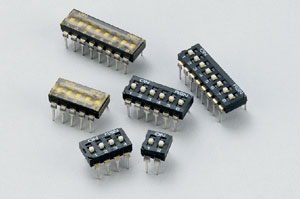

RI & RIR CONSTRUCTION

RI series

RIR series

  1. RI series (raised actuator) and RIR series (recessed actuator) available for different purposes.

  2. Splay terminals allow for automatic insertion by IC insertion machine.

  3. Straight terminals are available for manual insertion.

  4. Low contact resistance, and self-clean on contact area.

  5. Gold plated electrical contact and terminal plating by gold gives excellent results when soldering.

  6. All materials are UL94V-0 grade fire retardant plastics.

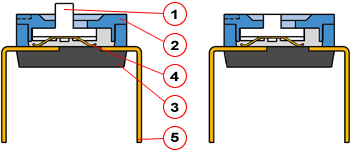

ITEM Description Materials Treatment
1 Actuator UL94V-0 Nylon Molded white
2 Cover UL94V-0 Nylon Molded black
3 Base UL94V-0 Nylon Molded black
4 Contact Beryllium Copper Gold plated at contact area
5 Terminal Brass Gold plated at contact area
and gold plating at terminal
MODEL

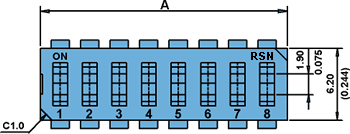

PROD NO. NO. OF POS DIM A
RI/RIR-01G 01 3.48 0.137
RI/RIR-02G 02 6.02 0.237
RI/RIR-03G 03 8.56 0.337
RI/RIR-04G 04 11.1 0.437
RI/RIR-05G 05 13.64 0.537
RI/RIR-06G 06 16.18 0.637
RI/RIR-07G 07 18.72 0.737
RI/RIR-08G 08 21.26 0.837
RI/RIR-09G 09 23.8 0.937
RI/RIR-10G 10 26.34 1.037
RI/RIR-12G 12 31.42 1.237

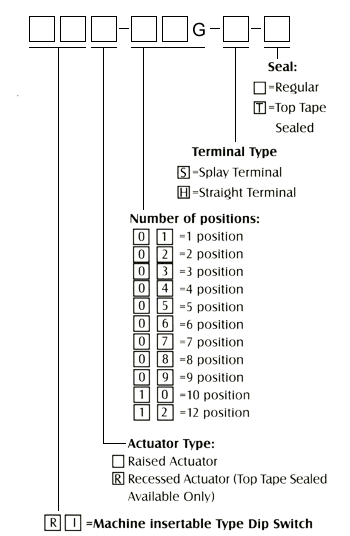

HOW TO ORDER
Example: RI-08G-S is a Machine Insertable Type Dip Switch, Raised Actuator 8 position, splay terminal.
PACKING All DIP switches are shipped in standard IC tubes with all poles in "OFF" position.

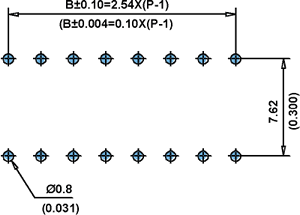

P.C.B. LAYOUT

CIRCUIT DIAGRAM

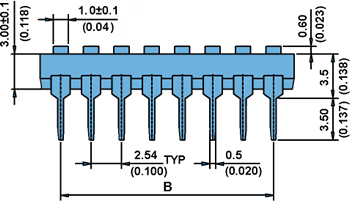

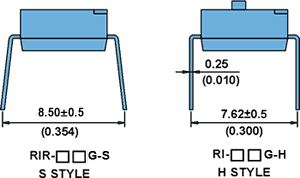

TERMINAL TYPE

SPECIFICATION
ELECTRICAL
Electrical life: 2000 operation cycles per switch 24VDC, 25mA.
Non-Switching Rating: 100mA, 50 VDC
Switching Rating: 25mA, 24VCD.
Contact resistance:  (a) 50mΩ max. at initial
(b) 100mΩ max. after life test.
Insulation resistance: 100MΩ min. (at 500VDC)
Dielectric Strength: 500VAC/1 minute.
Capacitance: 5pF max.
Circuit: Single pole single throw
MECHANICAL
Mechanical life: 2000 operations per cycle switch
Operation Force: 600gf max.
Stroke: 0.9mm
Operation Temp: -25 C to +70 C
Storage Temp: -40 C to +85 C
Vibration Test:  MIL-STD-202F METHOD 201A
Frequency: 10-55-10Hz/1 min
Directions: X, Y, Z, three mutually
perpendicular directions.
Time: 2 hours each direction.
High reliability.
Shock Test:  MIL-STD-202F METHOD 213B.
CONDITION A
GRAVITY: 50G (peak value), 11 m/sec.
Direction and times: 6 sides and three times in
each direction. High reliability.
SOLDERING AND CLEANING PROCESSES
For best results, please follow these recommendations: Keep all switch contacts in their "OFF" position for all operations.
WAVE SOLDERING: Recommended solder temperature at 500 F (260 C) max. 5 seconds.



HAND SOLDERING Use a soldering iron of 30 watts, controlled at 608 F(320 C) approximately 2 seconds while applying solder.
CLEANING PROCESS Flux clean using force rinse, high agitation or triple bath cleaning method. Freon TF or TE give excellent results. When vapor methods are used, do not subject the switch to solvents at temperatures above 125 F (51 C).
